Specifications

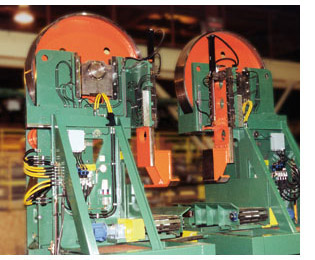

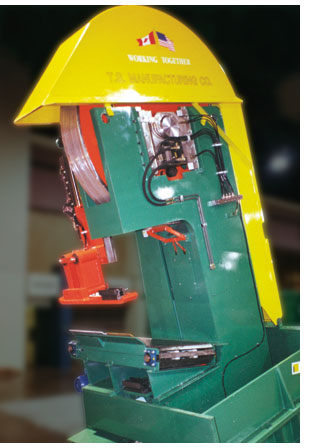

TS Manufacturing Bandmills provide greater cutting accuracy resulting in reduced sawdust & improved recovery.

Available in sizes of 48", 60", 72", 84"

Fabricated and stress relieved steel construction

Fabricated Steel Wheels allow for safer operation with less total cost of ownership than cast wheels

Patented tilt and strain mechanism with less moving parts and nitrogen charging offers quickest response times in the industry

High strain system designed for up to 30,000 lbs of strain

Narrow, double column profile increases stiffness, and decreases arbor stress to hold precision alignments longer and allows for close coupling in multi saw layouts

Oversized arbors with double spherical roller bearings

Dynamically balanced to ensure trouble free operation

Hydraulic saw tracking

Options

Hydraulically operated wheel guard

Regenerative or disc braking systems

Custom guide mounting, including swing away arms, rigid guide arms, automatic guide positioning

Machined steel slat bed or take-away belt

Spray mist lubrication system

Arrangements available: vertical, slant, horizontal

Narrow design ideal for multi-saw systems

Extended saw throat is available for specific applications
