A linear carriage must be precise, durable, and reliable. TS Manufacturing's Linear Carriages are built with these concepts in mind. Whether it is our reliable Boardmaster series of carriages, or our state of the art, patented, Accu-Chrome series – precision, durability and reliability come standard.

Boardmaster Series

Our Boardmaster Carriages are available in hydraulic linear positioning or electric positioning; in flat or slant configurations, with either board or tong dogging styles. The Boardmaster family comes standard in 36", 42", and 48" sizes with a variety of accessories available.

Boardmaster Specifications

Hydraulically operated wheel guard

Regenerative or disc braking systems

Custom guide mounting, including swing away arms, rigid guide arms, automatic guide positioning

Machined steel slat bed or take-away belt

Spray mist lubrication system

Arrangements available: vertical, slant, horizontal

Narrow design ideal for multi-saw systems

Extended saw throat is available for specific applications

Accu-Chrome Series

Our patented Accu-Chrome Carriages have been in trouble-free operation since 1988. This revolutionary design offers reduced maintenance, increased precision and a lowered total cost of ownership in comparison with conventional carriages.

In 2003, we introduced our revolutionary Accu-Chrome Generation 2 series of carriages. The second generation offers a completely 'maintenance free' design, with fully self-lubricating parts. This feature alone eliminates the need for costly lubrication systems and their maintenance prone nozzles.

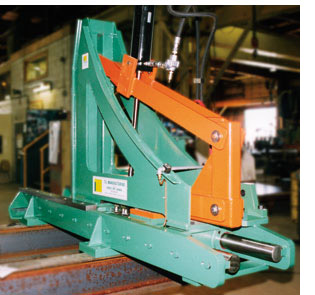

In the Gen 2 series, the dogging also rides upon the same self-lubricating round slides, eliminating the constant adjustment of keepers and the replacement of wear strips. Since these round slides support the knee away from the bunks, the wear plates on the face of the knees and bunks can be easily replaced without removing them.

Accu-Chrome Specifications

Available in 36", 42", 48"

Straight or slant designs

Board or Tong dogging styles

Sets within .002" accuracy

Knee and dogging ride upon chromed roundways

2 1/2" - 3 1/2" High tensile square axles

12 - 17" diameter nickel cast alloy wheels

Linear hydraulic or electric positioning

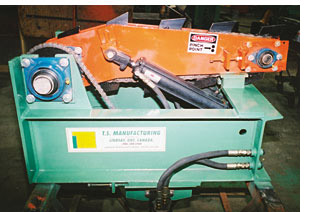

Accessories & Options

TS Carriage Systems are available with a wide array of optional accessories. Our 30+ years of experience designing, manufacturing and installing carriages allows us to offer every conceivable option from Carriage Drives (electric or hydraulic) to log turners and on-carriage log handling systems for increased productivity.

TS Accu-Chrome Carriage accessories are low maintenance. We utilize designs that eliminate conventional wear strips and lubrication requirements.

Additional Options

15" or 17" diameter wheels

Cinch Back

Chain or Brownsville Style Turners

Hammer (Clamp) Dogging

High pressure filters

Cant flippers and catchers

Automatic Lubrication System
(not required for Accu-chrome family)

Optimization Systems
