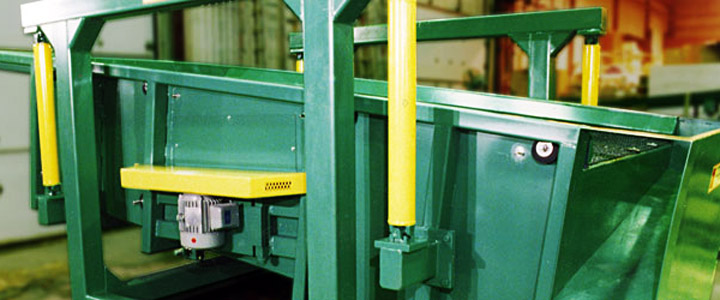

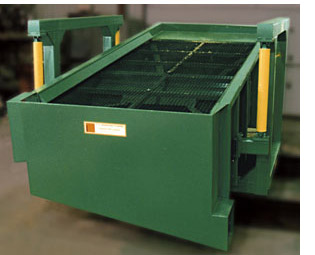

TS Chip Screens are available in standard sizes ranging from 12 to 66 units*. The counter-balanced design allows for high speed operations and lowered equipment fatigue. The durable construction incorporates tie rod mounting and heavy duty, double taper, roller bearings for maximum durability and reduced maintenance.

With over 30 years of experience, TS Manufacturing's in-house engineering department can custom design any screen to suit your application.

Specifications

From 12 to 66 units capacity
(*1 unit = 200ft3 / ~ 6 m3)

Mounted on 4 tie rods with universal joints

Orbital action

Multi-Screen levels

Standard 1800 RPM motor, T.E.F.C.

Heavy duty, double taper, roller bearings

Self contained counterweight

Frame of structural steel tubing

Easy to install, operate and maintain

Options

Multiple screens and sizes

Discharge spouts and configuration

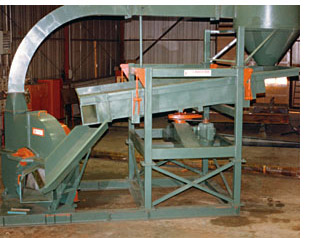

Built-in cyclone feeder

Punch plate screens in round, square and oblong shapes

Woven wire screens

Custom screen sizing

Fines can be fed into a TS high pressure pneumatic conveying system

Economy chipping/screening systems are also available
