Board Edgers
All edgers are available with shifting methods of: Manual Jog, Linear Positing, or Stacked Air Cylinder sets.

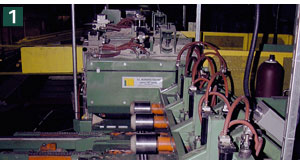

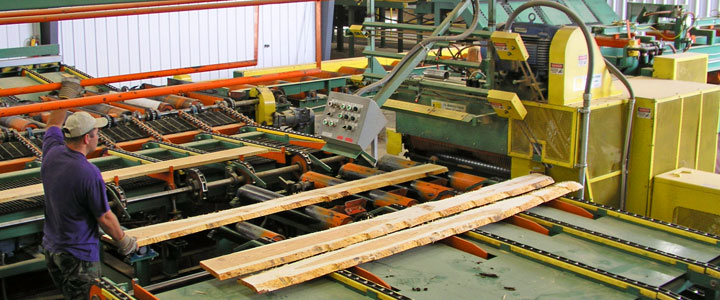

- High Speed Chain Feed Optimized 3 Saw Board Edger
Complete with Grade Edit Station. Infeed provides optimum positioning accuracy and feed speed to eliminate board tracking or skewing. Edger comes standard line bored & stress relieved to give prolonged life and maximum accuracy.

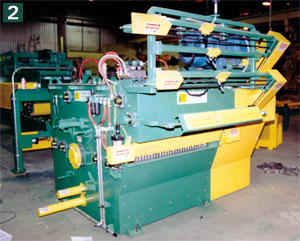

- 3 Saw Board Edger with Live Rolls
Line bored and stress relieved. 6 ½" opening with 2 shifting saws, driven press rolls and live rollers. Pneumatic lift on press rollers to accommodate larger boards.

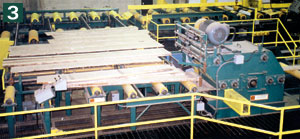

- 3 Saw Board Edger with Standard Infeed and Shifting Laser Lights
4½" opening. Gravity press rolls and dead bed rolls.
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
Gang/Combination Edgers

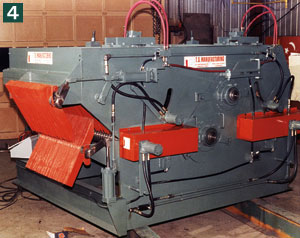

- Double Arbor Gang Edger
Minimizes kerf without the extra maintenance costs of guides.
- Top Arbor Clamshell Gang Edger
Clamshell design minimizes maintenance time and is extremely useful for multiple species gang edging, due to time reduction
for saw cluster changes.

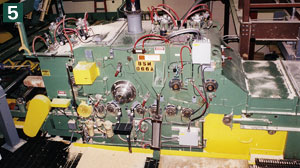

- Combination Edger
Minimize mill space requirements while maintaining production.
- Optimized Gang Edger

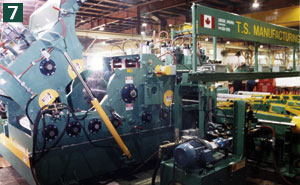

Maximum production, minimum maintenance. Clamshell design reduces workload for busy maintenance staff.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Tailing Options

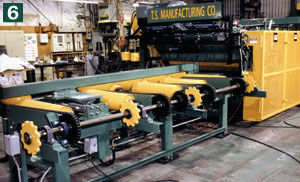

- Horizontal Circular Resaw Outfeed
Recovers boards that would otherwise need to be re-handled at the Resaw or could end up at the chipper.

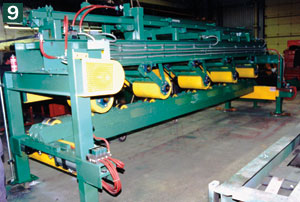

- 3 Saw Shifting Tailer
Shifts to allow for wide boards, while eliminating waste material down the chute.
Not Shown
Belt Tailer
- Allows boards and edgings to expediently exit the edger. Allows the operator, further down the processing line, to select edgings for resawing that otherwise would have been chipped.
Picking Fingers Tailer
- High speed tailing device that shifts in accordance with saws in the edger. Works extremely well with optimized edgers. Also allows the operator to have fully selectable edgings removal from the edger outfeed.
Spiral Roll Tailing with Fence
- Economically removes edgings from 2 saw edgers.
|
|
|
|
|
|
|
|
|
|
|
|
|
