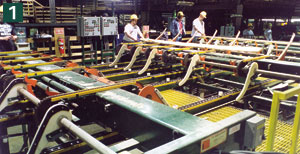

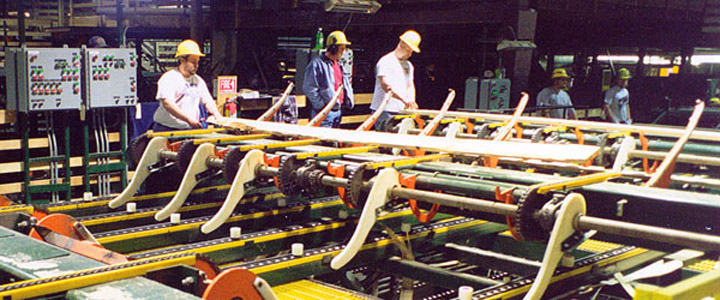

TS Manufacturing Grading Stations are available in single or multiple grader layouts, and can be retrofitted into existing installations. TS Multiple Grading Stations offer lug speeds up to 200 lugs/min. and can be fitted with TS Manufacturing Trimmers, Sorters, Stackers and other equipment, including grade mark readers. |
|
|
Above Table Grading Systems
Systems lift boards off of lug giving the grader a better view of the board, allowing him to grade with greater accuracy at a reduced speed, while maintaining higher overall lug counts.
Available with 2 types of board transport methods:
- Weaber Slide
Ideal for hardwood applications. Works well with wider boards. Can be fitted with a TS Manufacturing Board Turner.

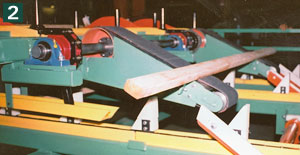

- Powered Belt Lift
Ideal for higher piece counts and applications with narrower boards. Can be fitted with a TS Manufacturing Board Turner.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Off Lug Grading Systems
All edgers are available with shifting methods of: Manual Jog, Linear Positing, or Stacked Air Cylinder sets.

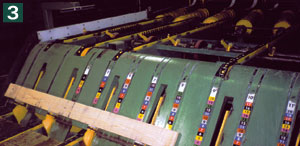

- Waterfall Grading Station
Designed for full face viewing with no manual operator labour. This also allows grader to perform at his own speed.

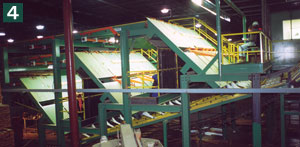

- Stacked Waterfall Grading
Offers the same advantages as regular Waterfall Grading Stations, while maintaining higher lug speeds, and allowing the grader to operate at his own speed in a lugged system.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Lugged Grading Systems

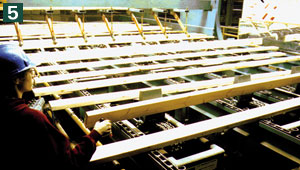

- Paddle Style Grading Station
Minimizes operator fatigue by gently turning boards, while increasing lug speeds for high production environments.

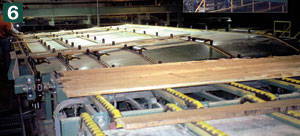

- Slanted Grading Table with SpeedUp Chains
Table is slanted to provide grader with better view of the board face, while allowing him to turn the board with the assistance of chain movement. Also available on non-lugged tables without the need of SpeedUp Chains.
|
|
|
|
|
|
|
|
|
|
|
|
|
