Specifications

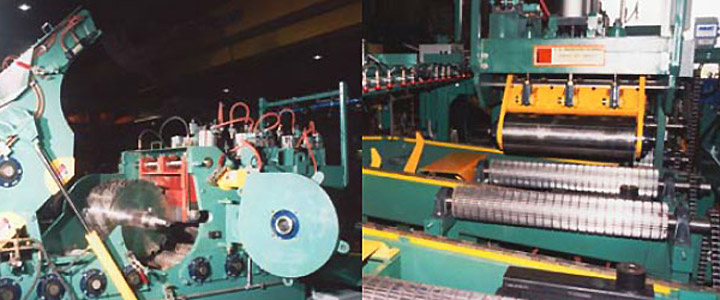

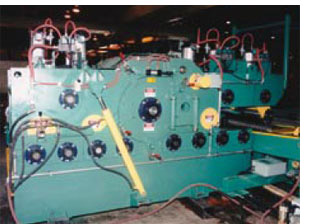

Thin Kerf Gang Edgers
4" to 10"
Clam shell opening
All TS frames are line bored and stress relieved

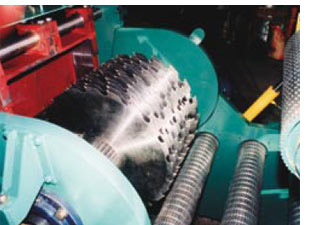

Arbor
Standard arbor is chromed with splined sleeve
Delta, involute and other options available

Fully Machined Guides
Light weight aluminum with babbit
Optional hardened steel
Heavy frames up to 2" thick steel plate

Sawing Style
Top or bottom arbor
Climb or counter climb cutting
Setworks
Shift individual or banks of saws
Shift with linear positioning cylinder or air stacked modules

Optimization Options
Photo cell scan
Laser scan
Scan linear or transverse
Laser light prepositioning

Feed Systems

Manual or fully optimized with either feed chain or hard chromed feed roll charging systems on optimized units. They are available as pick and place or positioning pin style. An optimized system is available with grade input and operator override prepositioning. Linear position laser lights project optimized sawlines on cants and the operator has the ability to reposition the sawing solution to maximize grade or value recovery. Line bar types can be fixed or shifting.

Outfeed System Options
Rollcase
Belt
