Specifications

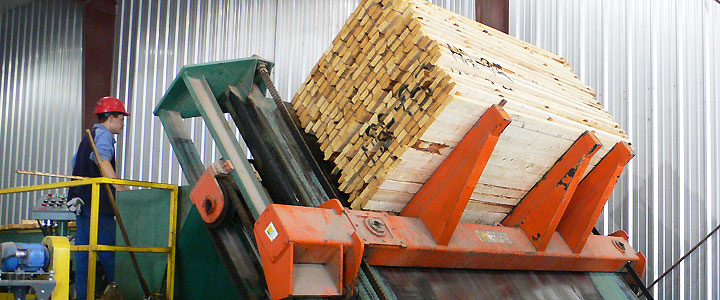

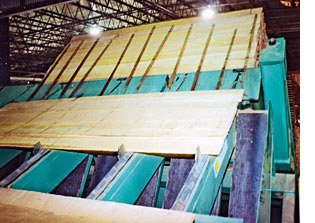

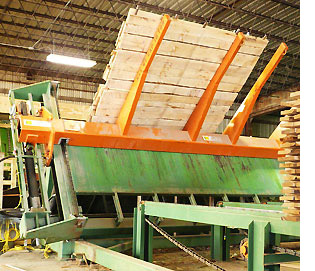

Package breakdown is an important component of lumber handling systems. TS Manufacturing's line of Tilt Hoists offer options and customizations to suit every application.

With flat, full face panning standard on all Tilt Hoists, stickered packages no longer have the tendency to get jammed or break sticks. The high speed, fully guided, single bore, double acting hydraulic cylinder offers exceptionally quick cycle times. This double action, guided cylinder also offers reduced equipment fatigue, longer cylinder life, and more consistent lift capacity over single action telescopic cylinder systems.

A TS Tilt Hoist utilizes every design advantage possible, like equalizing chains that eliminate potential problems caused by unbalanced packages, or self-lubricating pivot points throughout the hoist, for reduced maintenance.

Options

Tier leveling mechanism

Spill table or tier let down chains

Sticker handling system

High speed proportional hydraulics system

Automatic tier detection

Combination Tilt Hoist/Bin Dumping Up-Ender Unit

Double Height Package Systems with dunnage handling

Tilt Hoists can be easily customized to suit any application, including the design of systems utilizing our economy line of electrically driven tilt hoists
